All Products

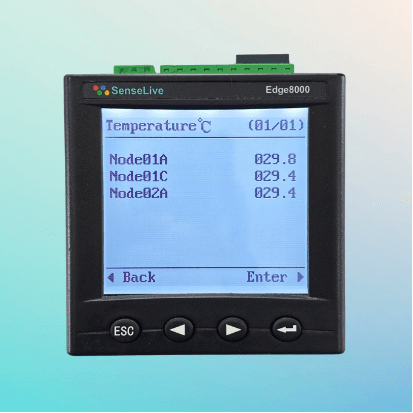

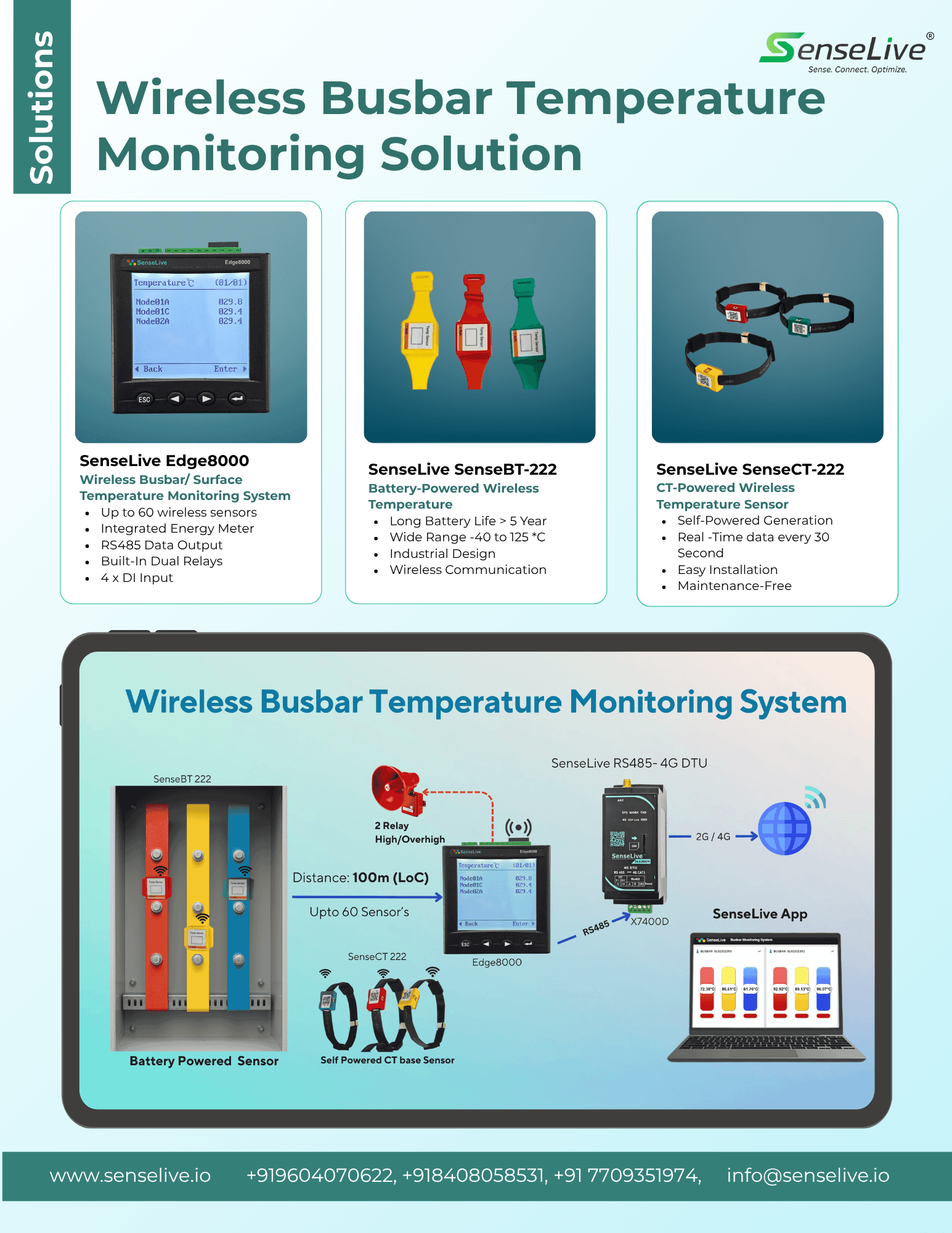

SenseLive Edge8000

Wireless Bus Bar Temperature Monitoring System

Wireless temperature monitoring
Integrated energy metering
Dual relays for control

Technical Specifications

Communication	Wireless
Serial Interface	1 x RS-485 (Modbus-RTU)
Wireless Frequency	470 MHz
Protocols	Modbus-RTU
Digital Channels	4 x Digital Inputs + 2 x Digital Output
Power Supply	AC 85-265V / DC 100-300V (8W)

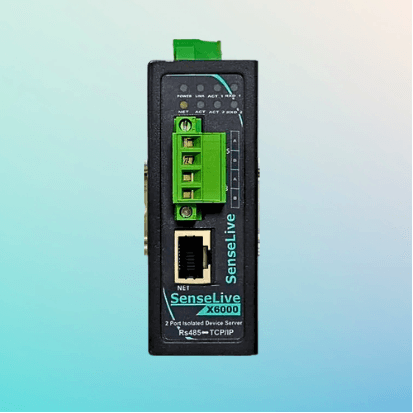

SenseLive X6000

2 Port Isolated Device Server

2-Port Isolation
Multi-host Support
MQTT Support

Technical Specifications

Isolation Type	Optocoupler Serial Isolation
Ports	2 x RS485 Independent
Max Conn.	Supports 100 TCP Links
Data Routing	RTU to Modbus TCP
Humidity	5% to 95% RH
Installation	DIN-Rail / Panel

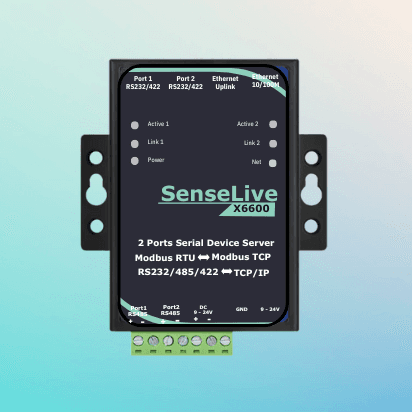

SenseLive X6600

RS232/485/422 to TCP/IP converter

Compact & Rugged
Range: -40°C to +85°C
9–24V DC

Technical Specifications

Dimensions	88 x 62 x 33 mm
Duplex Mode	Full Duplex RS232/422
IP Capacity	Connects to 8 Clients
Heartbeat	Custom TCP Keep-alive
Power Draw	< 1.5W Low Power
Indicators	PWR, LINK, ACT 1/2

SenseLive X7450L

4G DTU – RS-232/RS-485 Serial to HTTP, MQTT & Modbus TCP Edge-to-Cloud Gateway

Multi-Network Support – FDD/TDD LTE & GSM (7-band all-netcom) for Global Mobile, Telecom.
Flexible Protocols – TCP Server/Client, UDP; transparent serial pass-through; Modbus RTU ↔ Modbus TCP; MQTT/JSON; HTTP/JSON.
Edge Intelligence – Threshold alarms, data translation & scaling, change-triggered uploads, offline alarms, local storage up to ~50 MB.

Technical Specifications

Cellular Bands	B1/B3/B5/B8 (FDD LTE); B34/B38/B39/B40/B41 (TDD LTE); B3/B8 (GSM)
Throughput	LTE ↓10 Mbps / ↑5 Mbps; GPRS ↓85.6 kbps / ↑85.6 kbps
Serial Interfaces	RS-232 (DB9) & RS-485 (3.5 mm terminal)
Serial Parameters	300–460 800 bps; 5–8 data bits; None/Odd/Even parity; 1–2 stop bits; hardware/software flow control
Buffer Storage	Dozens of MB (~50 MB) offline logs
SIM & Antenna	Standard SIM (3 V / 1.8 V); 50 Ω SMA female antenna port (stick or suction-cup)

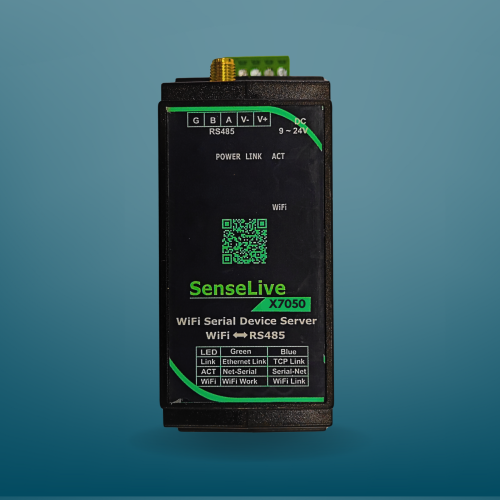

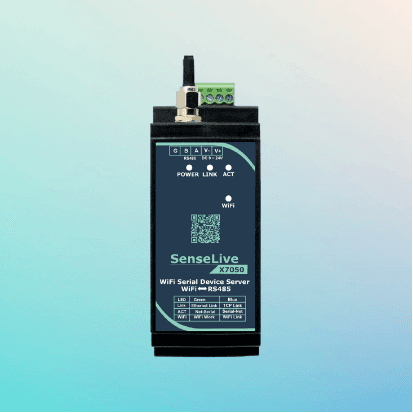

Senselive X7050

Wi-Fi Serial Server – RS-485 to 802.11b/g/n with Modbus RTU↔TCP

Supports Wi‑Fi 802.11 b/g/n standards for reliable wireless communication
Wide input voltage range (9–24V) and industrial-grade operating temperature (–40℃ to 85℃)
Robust RS485-to-Wi‑Fi conversion for legacy serial devices

Technical Specifications

Wi-Fi Standard	802.11 b/g/n
Baud Rate	4800 ~ 921600 bps
Protocols	MQTT, HTTP, Modbus TCP
Power Input	9-24 V DC
Protection	IP65 Rated
Cache	10,000 Register Cache

WiFi Solutions

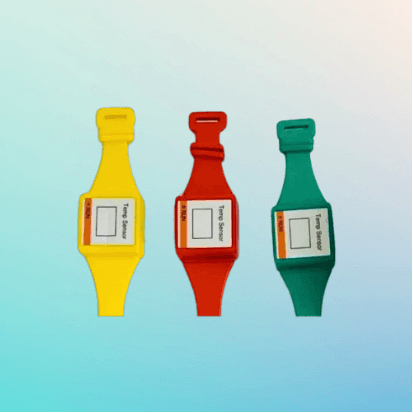

SenseBT-222

Battery-Powered Wireless Temperature Sensor

Long Battery Life
Wide Range
Industrial Design

Technical Specifications

Communication	Wireless
Wireless Frequency	470 MHz
Wireless Range	Up to 100 m (Line of Sight)
Measurement Range	-50°C to +125°C (±1°C Accuracy)
Power Source	Lithium battery (≥5 years life)
Sampling Interval	25s (Configurable to 5 min)

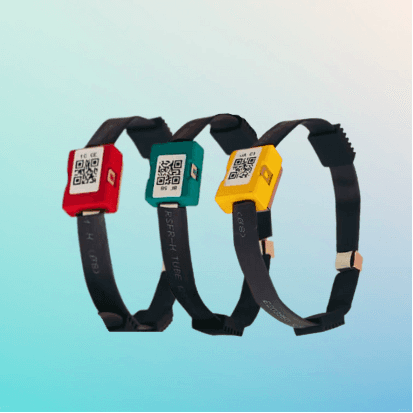

SenseCT-222

CT-Powered Wireless Temperature Sensor

Self-Powered
Real-time Monitoring
Easy Installation

Technical Specifications

Communication	Wireless
Wireless Frequency	470 MHz
Wireless Range	Up to 100 m (Line of Sight)
Measurement Range	-50°C to +125°C (±1°C Accuracy)
Power Source	Inductive CT (≥5A primary circuit)
Sampling Interval	25s (Configurable)

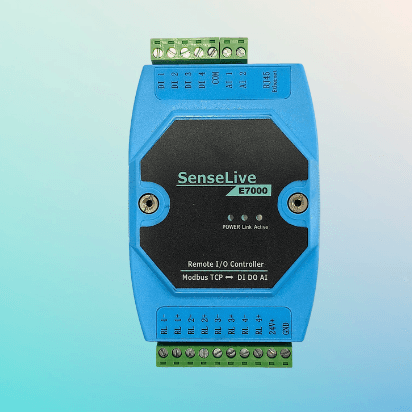

SenseLive E7000

Ethernet-based Remote I/O Controller

4 Digital Inputs (passive switch or active power level)
2 Analog Inputs (0-5V, 0-10V, 4-20mA, or 0-10kΩ)
4 Relay Outputs (5A @ AC250V or DC30V)

Technical Specifications

Network Interface	10/100 Mbps Ethernet (RJ45)
Protocols	Modbus TCP/UDP
Digital Inputs	4 x Opto-isolated (Dry/Wet)
Analog Inputs	2 x (0-10V / 4-20mA / 0-10KΩ)
Relay Outputs	4 x Form-C (5A @ 250V)
Power Supply	24V DC (9-24V Range)

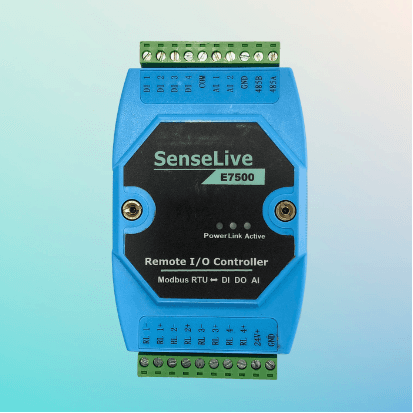

SenseLive E7500

RS485-based Remote IO Controller

Versatile I/O Options: Multiple digital and analog I/O channels for comprehensive control and monitoring in industrial environments.
RS485 Communication: Reliable RS485 communication with Modbus RTU protocol and baud rates from 1200 to 115200 bps.
High Reliability: Industrial-grade design that operates in wide temperature ranges (-40°C to +85°C) for stable, long-term performance.

Technical Specifications

Serial Interface	1 x RS-485 (Terminal Block)
Protocols	Modbus RTU
Baud Rate	2400 - 115200 bps
Digital Inputs	4 x Opto-isolated
Digital Output	Relay Output
Analog Inputs	2 x Configurable AI

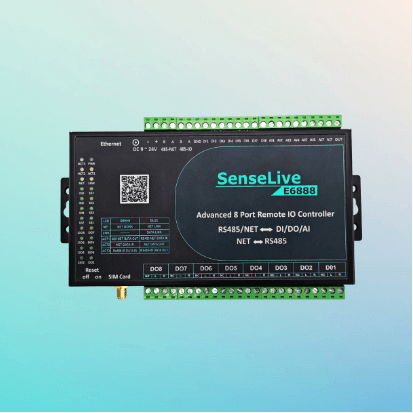

SenseLive E6888

8 Channels DI/DO/AI Remote IO Controller

8 Digital Inputs
8 Analog Inputs (0-5V, 0-10V, 4-20mA, or 0-10kΩ)
8 Relay Outputs (o 0–5V, 0–10V, 4-20mA, 0–10kΩ)

Technical Specifications

Serial Interface	1 x RS-485
Network Interface	4G, Optional(WiFi/Ethernet)
Digital Channels	8 DI (Dry/Wet) + 8 Relay DO
Analog Inputs	8 x (4 x 0-5V + 4 x 4-20mA)
Protocols	Modbus RTU, Optional(Modbus TCP)
Power Supply	DC 24V / 1A

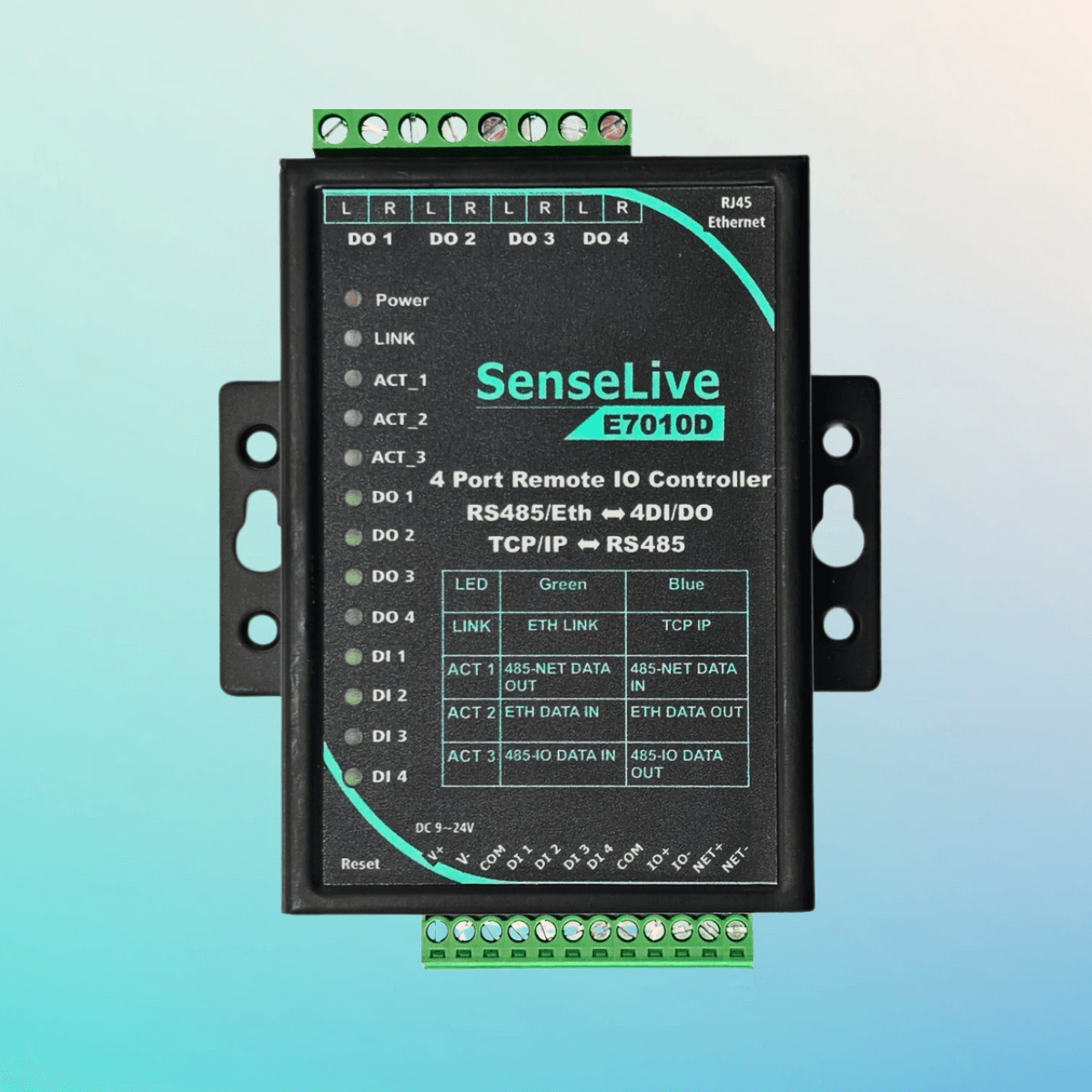

SenseLive E7010D

4 channel IO Controller

4 Digital Inputs
4 Digital Outputs
Modbus RTU-to-json conversion

Technical Specifications

Serial Interface	1 x RS-485
Network Interface	4G, Optional(WiFi/Ethernet)
Protocols	MQTT, JSON, HTTP, TCP/UDP
Digital Channels	4 DI + 4 DO
Power Supply	9-24V DC (200mA @ 12V)
Operating Temperature	-40°C to +85°C

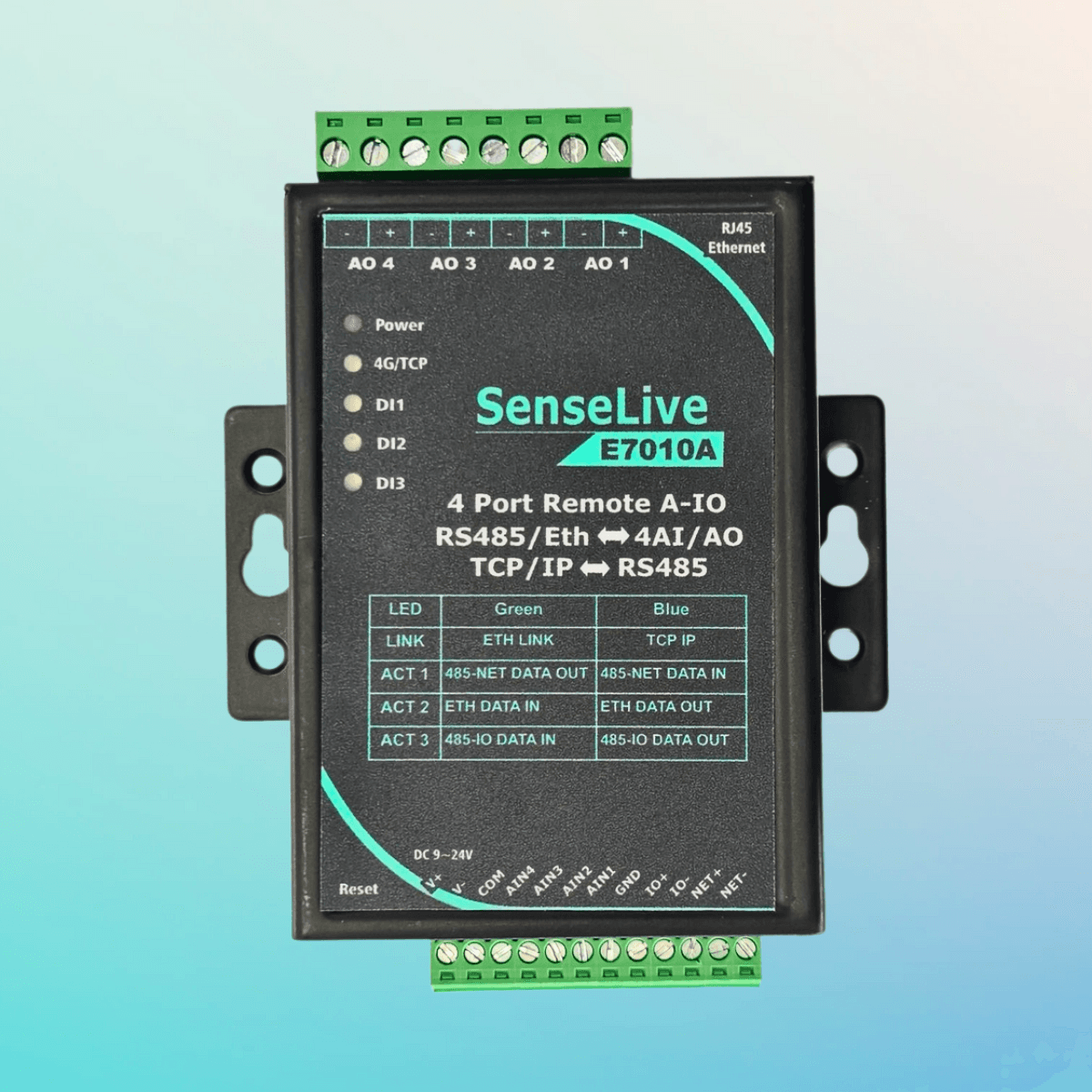

SenseLive E7010A

4 channel IO Controller

4-channel AI input
4-channel AO output
current output 4-20mA

Technical Specifications

Serial Interface	1 x RS-485
Network Interface	10/100M Ethernet (RJ45)
Analog Channels	4 AI Input + 4 AO Output
Protocols	Modbus RTU, Modbus TCP
Accuracy	16-bit ADC/DAC High Precision
Power Supply	9-24V DC

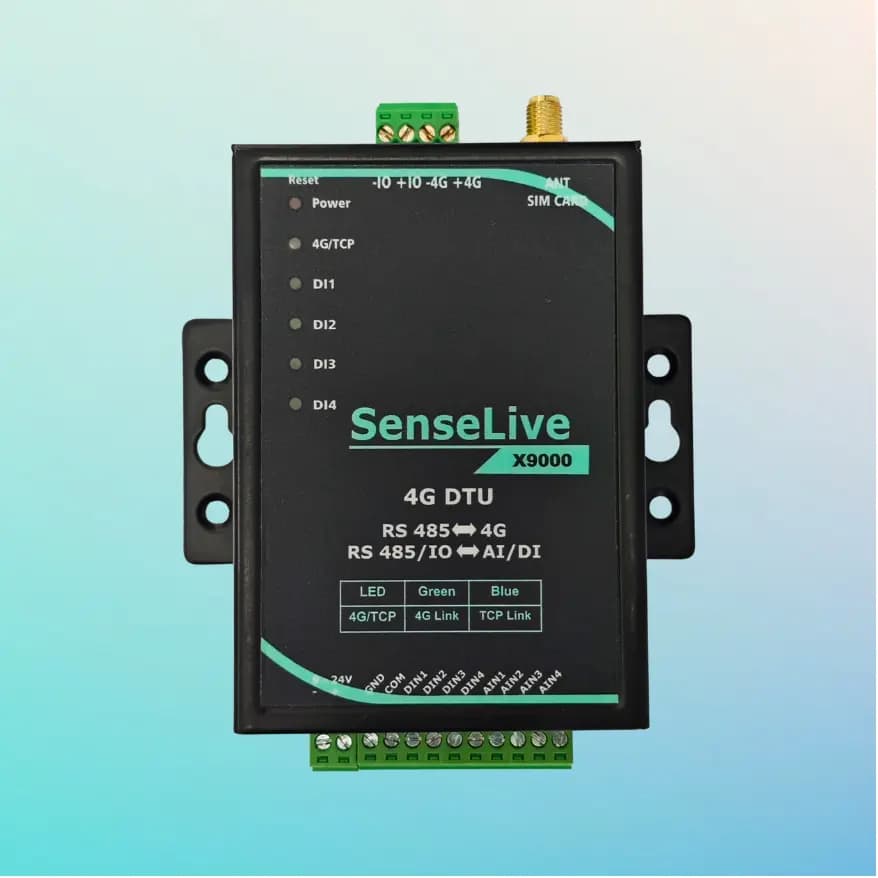

SenseLive X9000

4G IoT Gateway with Edge Intelligence

Built-in 4G LTE cellular connectivity for reliable remote communications
Multiple I/O channels including RS485, digital inputs, and analog inputs
Computing capabilities for local data processing and decision-making

Technical Specifications

Serial Interface	1 x RS-485
Network Interface	4G, Optional(WiFi/Ethernet)
Network Speed	DL 110 Mbps / UL 15 Mbps
Protocols	MQTT (JSON), HTTP GET/POST, Modbus RTU TCP, TCP/UDP
Input Channels	4 x DI (Dry/Wet) + 4 x AI (4-20mA/0-10V)
Power Supply	9-24V DC (Terminal Block)

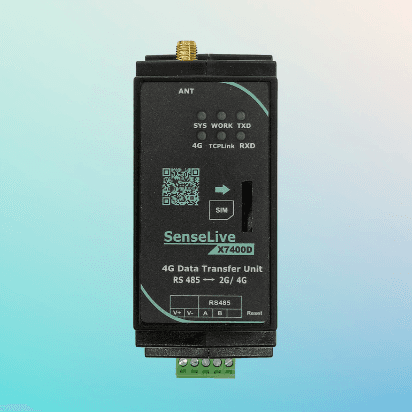

SenseLive X7400D

DIN-rail 4G CAT1 DTU with RS485 Interface

4G CAT1 with 2G Fallback
RS485 Interface
MQTT & JSON Support

Technical Specifications

Serial Interface	1 x RS-485
Network Interface	4G LTE Cat 1 (B1/B3/B5/B8)
Network Speed	DL 10 Mbps / UL 5 Mbps
Protocols	Modbus TCP/RTU, MQTT, JSON, HTTP, Optional(MQTTS)
Power Supply	9-24V DC (Reverse-polarity protection)
Operating Temperature	-40°C to +85°C

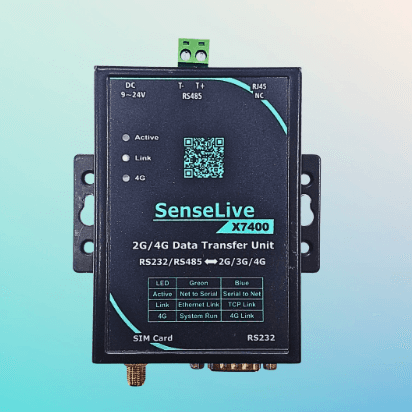

SenseLive X7400

DIN-rail Wall-Mounted 4G DTU With RS232/485 support and Modbus conversion

LTE Cat 4
WiFi Hotspot
Compact Design

Technical Specifications

Serial Interface	1 x RS-232 + 1 x RS-485
Network Interface	4G/Ethernet
Network Speed	LTE Cat 4 (DL 150 Mbps)
Protocols	Transparent, Modbus Gateway, VPN, TCP/UDP
Power Supply	9-24V DC
Storage	Upto 50MB

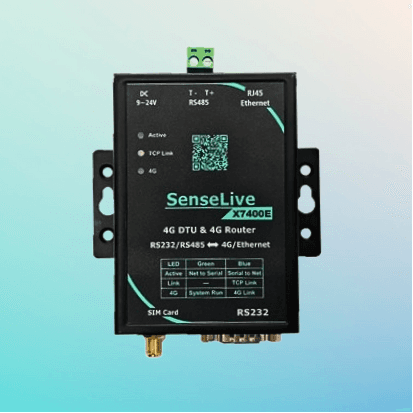

SenseLive X7400E

2G/3G/4G Serial Device Server

Multiple Communication Modes – TCP Server/Client, UDP, supports multiple client connections
Flexible Serial Port – 1200–460800 bps, 5–8 data bits, multiple parity & stop-bit options, full flow control
Versatile Data Routing – RS232/485 to 4G; X7400E adds Ethernet-to-4G and DHCP Server support

Technical Specifications

Serial Interface	1 x RS-232/485 (DB9 or Terminal)
Network Interface	4G LTE (FDD/TDD) with GSM Fallback
Network Speed	LTE Cat 1: 10Mbps DL / 5Mbps UL
Protocols	TCP Server/Client, UDP, Virtual COM, MQTT, HTTP
Power Supply	9-24V DC via Terminal Block
Operating Temperature	-40°C to +85°C

SenseLive X5050

RS485 to TCP/IP Modbus Server

Modbus TCP ↔ RTU Conversion
MQTT Protocol Support
DIN-Rail Mounting

Technical Specifications

Serial Interface	1 x RS-485 (Terminal Block)
Network Interface	10/100 Mbps Ethernet (RJ45)
Network Speed	10/100 Mbps
Protocols	Modbus TCP, Modbus RTU, MQTT, HTTP, JSON
Power Supply	9-24 V DC (Terminal Block)
Operating Temperature	-40°C to +85°C

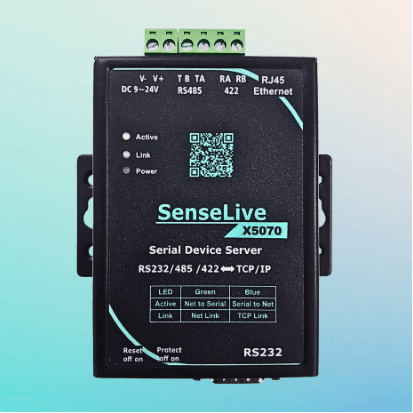

SenseLive X5070

Industrial RS232/RS485/RS422 Gateway

Selectable Interface
Modbus RTU to TCP
MQTT & JSON Upload

Technical Specifications

Serial Interface	RS232 / RS485 / RS422
Network Interface	10/100 Mbps Ethernet (RJ45)
Network Speed	10/100 Mbps
Protocols	TCP, UDP, Modbus TCP, MQTT, DHCP, DNS
Power Supply	9-24V DC (Terminal Block)
Operating Temperature	-40°C to +85°C

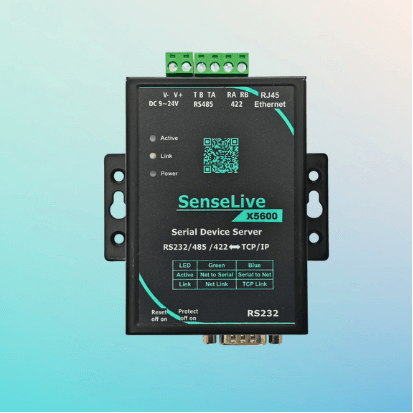

SenseLive X5600

RS232/485/422 To TCP/IP Converter

Dual RS485/422 Ports
Modbus TCP ↔ RTU
MQTT & JSON Gateway

Technical Specifications

Serial Interface	RS-232 + RS-485/422
Network Interface	10/100 Mbps Ethernet (RJ45)
Network Speed	10/100 Mbps
Protocols	TCP Server/Client, UDP, Modbus, MQTT, JSON
Power Supply	9-24V DC
Operating Temperature	-40°C to +85°C

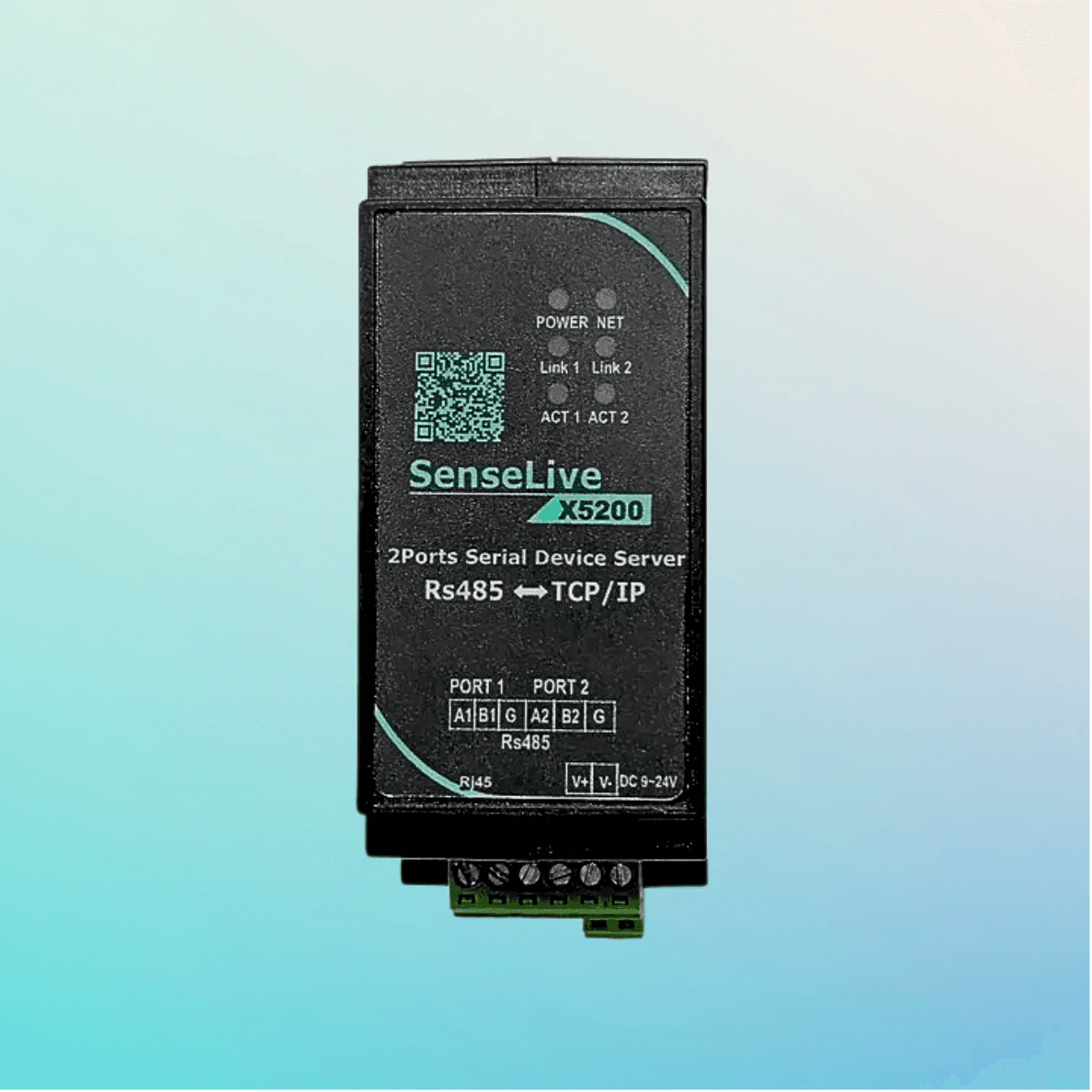

SenseLive X5200

RS485 to TCP/IP ModbusTCP

Multi-mode Support
Wide Operating Range
Flexible Power 9–24V DC

Technical Specifications

Serial Interface	Dual Port RS485
Network Interface	10/100 Mbps Ethernet (RJ45)
Network Speed	10/100 Mbps
Protocols	TCP, UDP, Multicast, Modbus TCP/RTU
Power Supply	9-24V DC (Terminal Block)
Operating Temperature	-40°C to +85°C

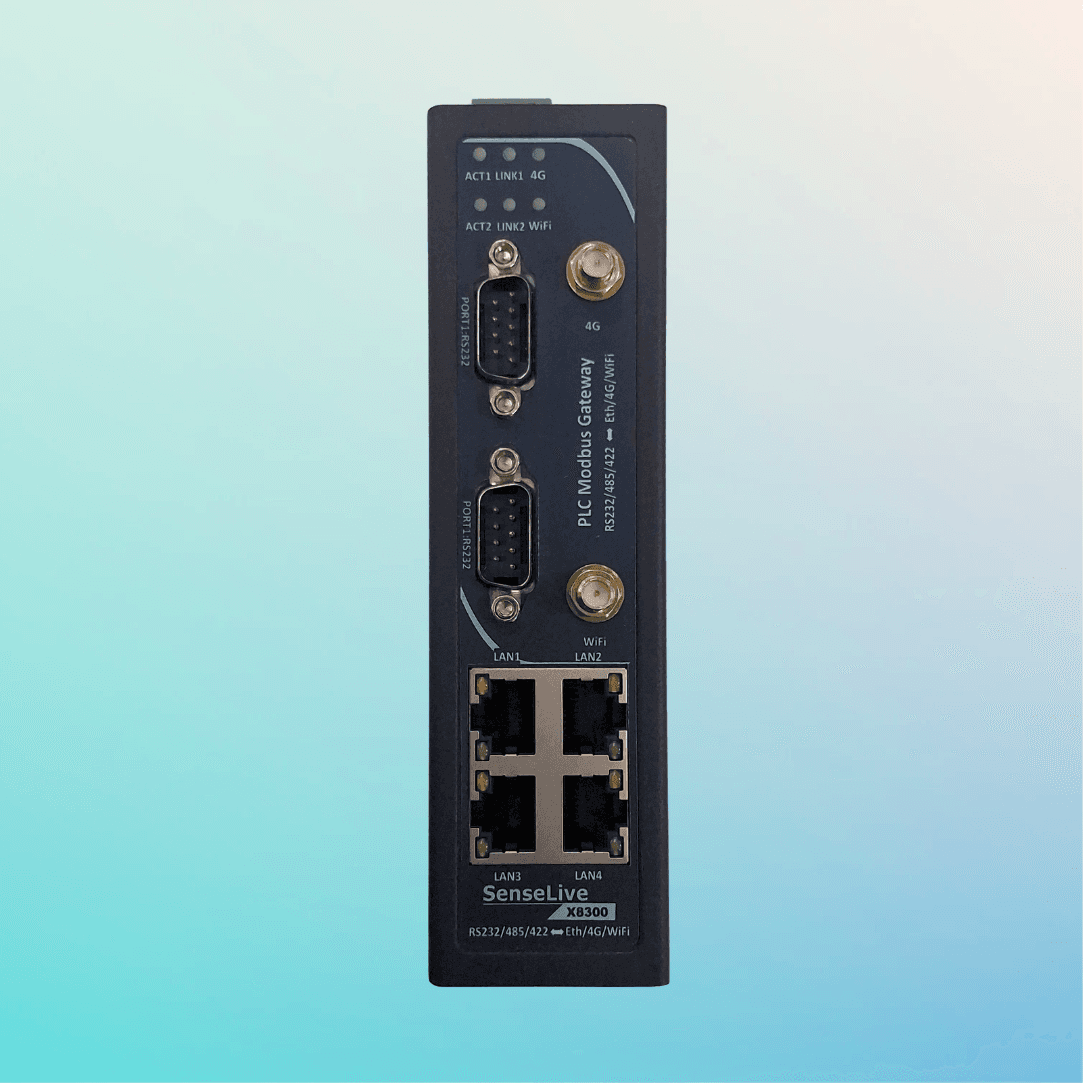

SenseLive X8300

PLC Modbus gateways Eth/4G/WiFi

Multiple Hosts Support
9-24v dc Operation
WiFi/Eth/4G Connectivity

Technical Specifications

Network Interface	4G LTE / Wi-Fi / Ethernet
Network Speed	LTE Cat 4 / 100M Ethernet
Protocols	MQTT, HTTP, Modbus TCP
Power Supply	9-24V DC (Terminal or Jack)
Operating Temperature	-40°C to +85°C
Capacity	30 TCP Server / 7 TCP Client sessions

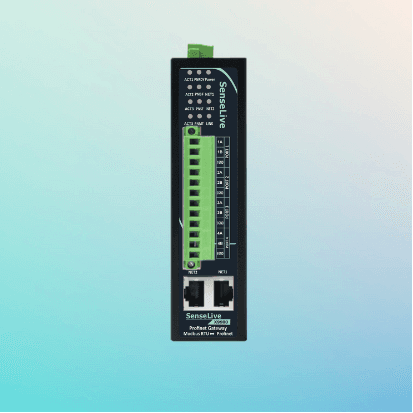

SenseLive X9900

Modbus gateways Profinet Bridge

Profinet–Modbus conversion
Dual 10/100M Ethernet
4× RS485 ports

Technical Specifications

Serial Interface	4 x RS-485 (Baud: 300-921600)
Network Interface	Dual 10/100M Ethernet (RJ45)
Protocols	PROFINET, Modbus RTU
Data Mapping	Up to 1024 bytes Input / Output
Power Supply	9-24V DC (Reverse polarity protection)
Operating Temperature	-40°C to +85°C

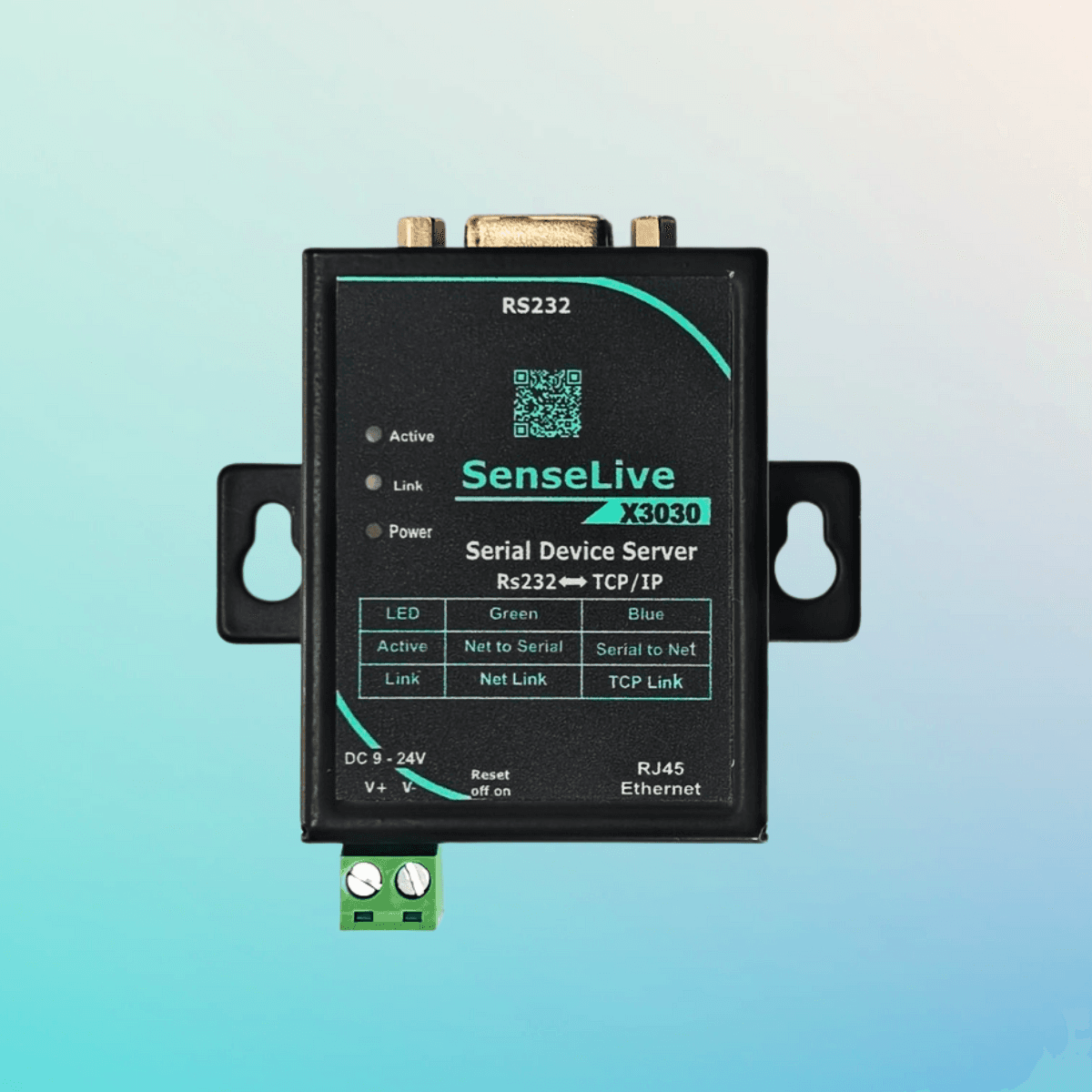

SenseLive X3030

Compact RS232 to Ethernet Gateway

RS232 to RJ45 Ethernet
TCP Server/Client, UDP
Range: -40°C to +85°C

Technical Specifications

Serial Interface	1 x RS-232 (RXD, TXD, GND)
Network Interface	10/100 Mbps Ethernet (RJ45)
Network Speed	10/100 Mbps
Protocols	TCP, UDP, Modbus TCP, MQTT, HTTP, ARP
Power Supply	9-24V DC (Terminal Block)
Operating Temperature	-40°C to +85°C

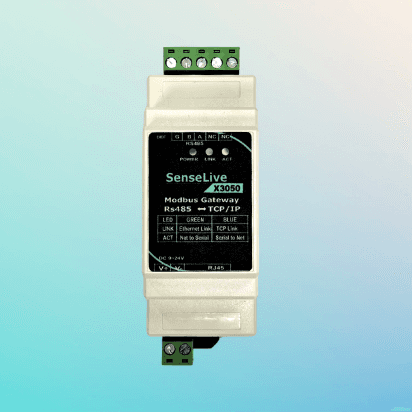

SenseLive X3050

RS485 to TCP/IP Modbus Gateway

RS485 interface
Modbus TCP/RTU
MQTT support

Technical Specifications

Serial Interface	1 x RS-485 (Terminal Block)
Network Interface	10/100 Mbps Ethernet (RJ45)
Network Speed	10/100 Mbps
Protocols	TCP Server/Client, UDP, Modbus TCP/RTU, MQTT
Power Supply	9-24V DC (Terminal Block)
Operating Temperature	-40°C to +85°C

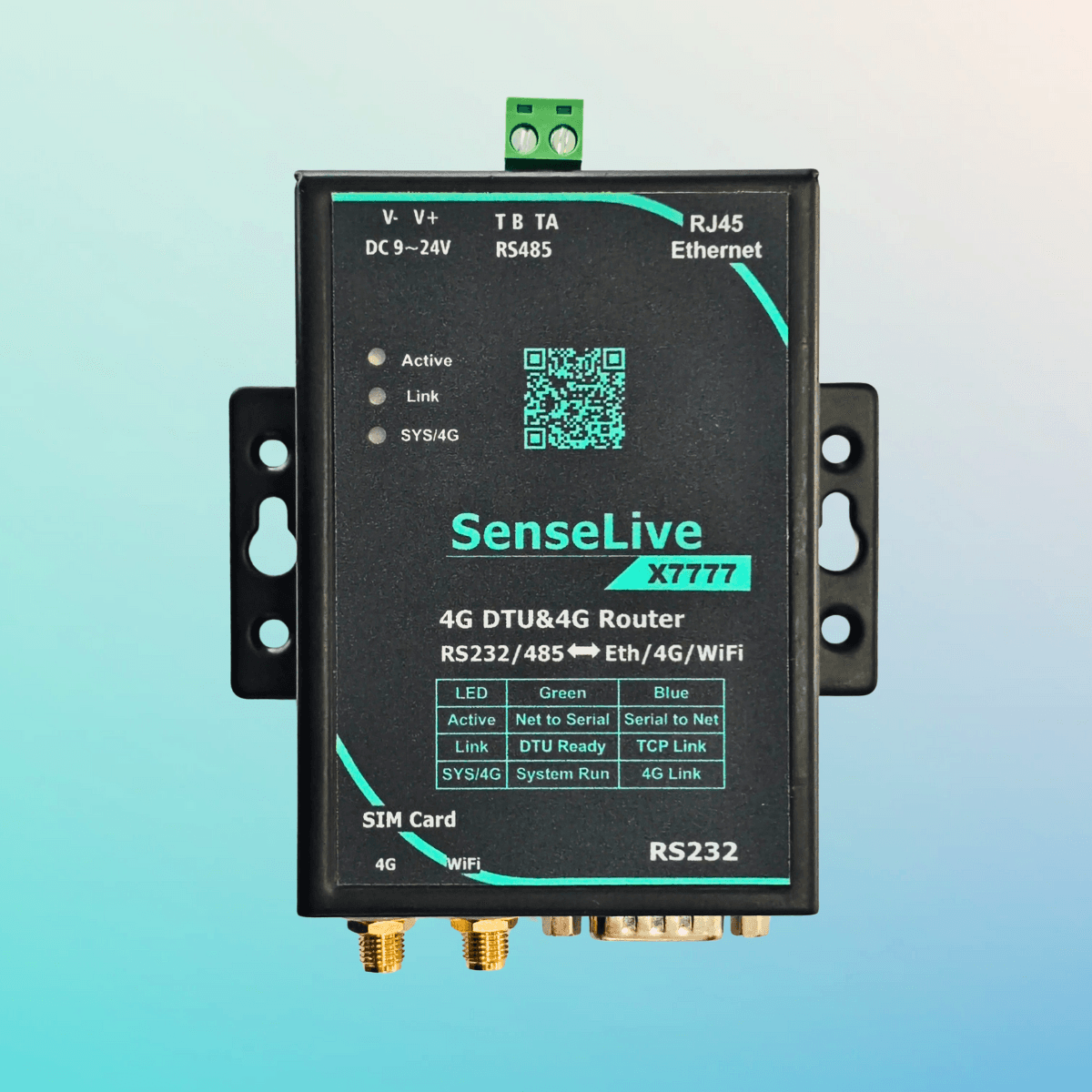

SenseLive X7777

Multi-Interface 4G/WiFi Gateway

Dual RS485 Ports
Modbus TCP ↔ RTU
MQTT & JSON Gateway

Technical Specifications

Serial Interface	Single Port RS485
Network Interface	4G LTE + WiFi + 10/100M Ethernet
Network Speed	150Mbps WiFi / 100Mbps Ethernet
Protocols	Modbus TCP/RTU, MQTT, JSON, HTTP, TCP/UDP
Processing	580 MHz CPU / 64 MB RAM
Power Supply	9-24V DC (Terminal Block)

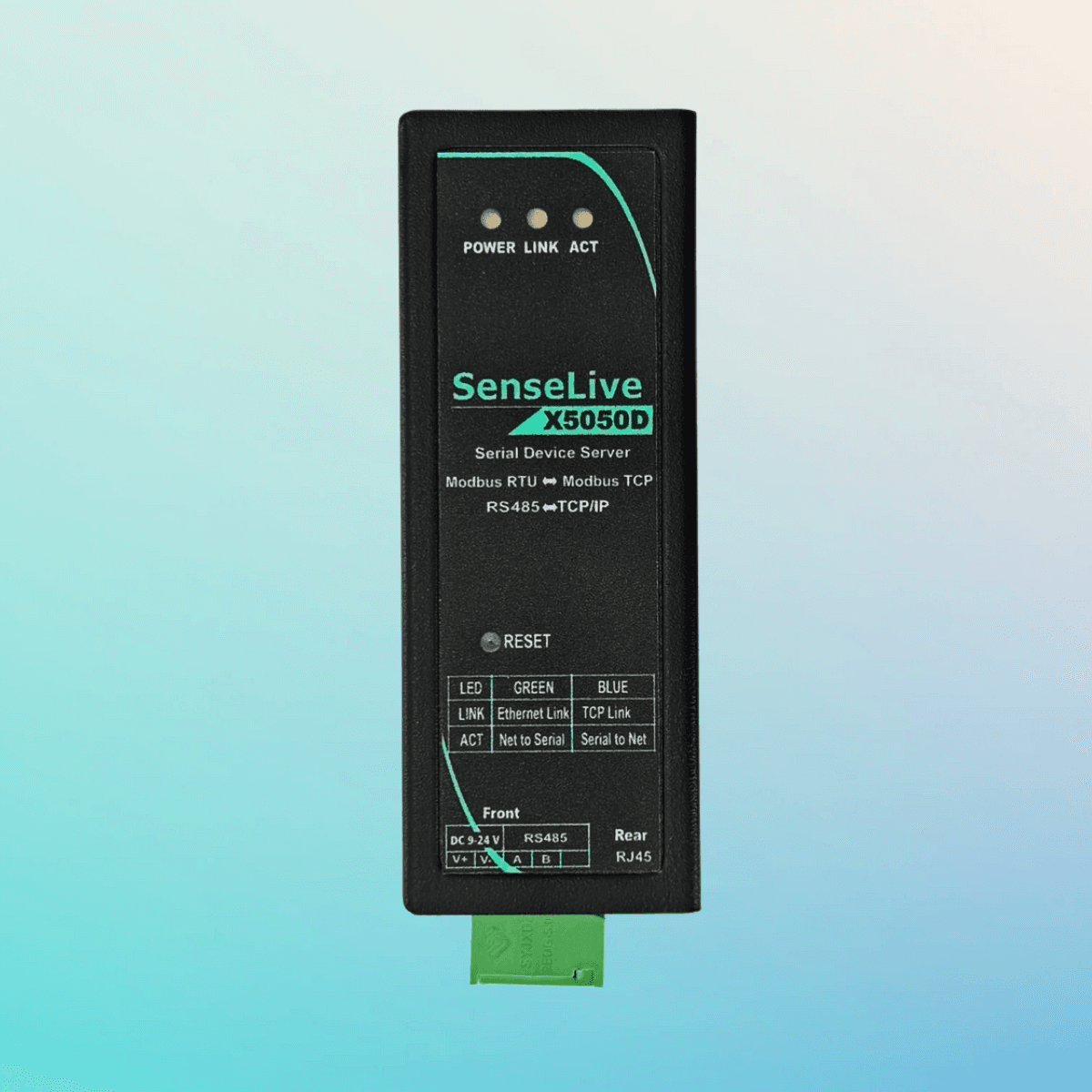

SenseLive X5050D

Metal-cased RS485-to-Ethernet

Durable metal casing
Modbus TCP ↔ RTU
RS485 to Ethernet

Technical Specifications

Serial Interface	1 x RS-485 (Up to 32 devices)
Network Interface	10/100M Ethernet (RJ45)
Network Speed	10/100 Mbps
Protocols	Modbus TCP/RTU, MQTT, JSON, HTTP
Power Supply	9-24V DC (Terminal Block)
Operating Temperature	-40°C to +85°C

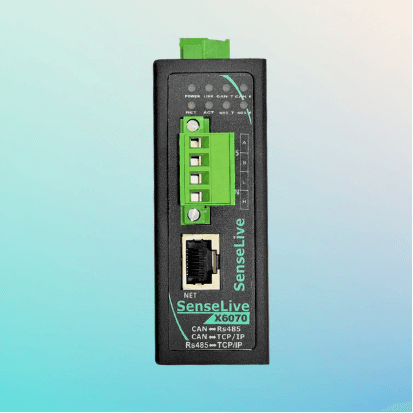

SenseLive X6070

Dual RS485/CAN Gateway

RS485 / CAN Interface
2× RS485 Ports with Independent Configuration
Baud Rate Support up to 921.6 Kbps

Technical Specifications

Serial Interface	Single Port RS485
Network Interface	10/100M Ethernet (RJ45)
Network Speed	10/100 Mbps
Protocols	TCP/UDP, MQTT, HTTP, CAN, Modbus TCP/RTU
Power Supply	9-24V DC (Terminal Block)
Operating Temperature	-40°C to +85°C

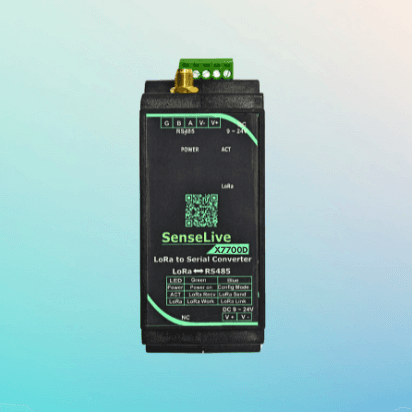

SenseLive X7700D

DIN-Rail LoRa Device

DIN-Rail Mounting
RS485 & Modbus RTU support
Long-Range LoRa Transmission

Technical Specifications

Serial Interface	1 x RS-485 (3-Pole Terminal)
Network Interface	LoRa Wireless
LoRa Frequency	410-525 MHz (Default 490 MHz)
LoRa Range	Up to 1 km Line-of-Sight
Security	AES128 Bit Hardware Encryption
Power Supply	9-24V DC (Reverse Polarity Protected)

LoRa/ZigBee Devices

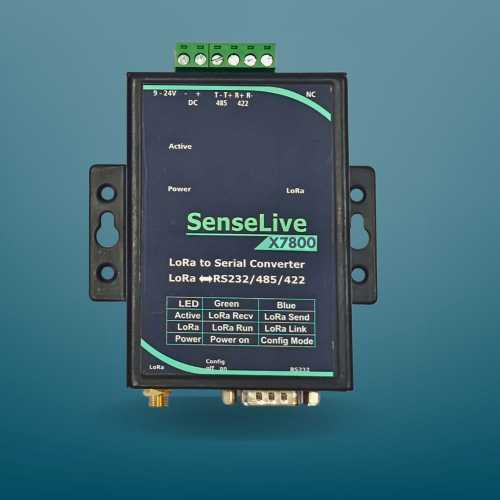

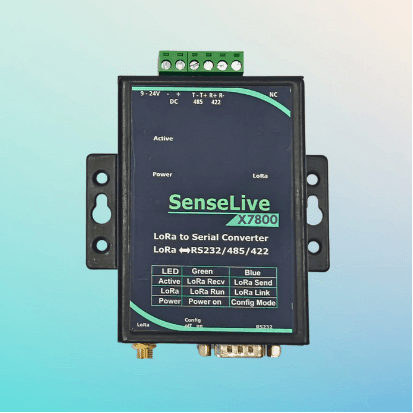

SenseLive X7800

Wall-Mounted LoRa Device with RS232 Features

Wall-Mount Design
Dual Serial Support
LoRa & Private LoRa

Technical Specifications

Serial Interface	1 x RS232 (DB9) + 1 x RS485
Network Interface	LoRa Wireless
LoRa Frequency	410-525 MHz (Default 490 MHz)
LoRa Range	Up to 1 km Line-of-Sight
Power Supply	9-24V DC (~30 mA @ 12V)
Operating Temperature	-40°C to +85°C

LoRa/ZigBee Devices

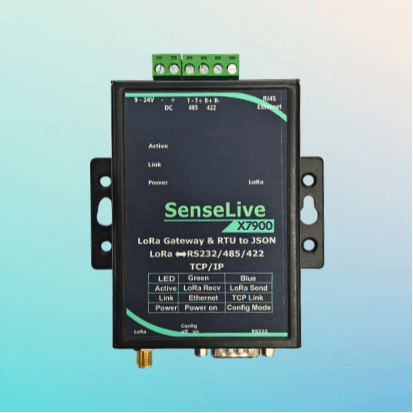

SenseLive X7900

LoRa Gateway with TCP Output

LoRa Gateway
TCP/IP Ethernet Output
Web-Based Config

Technical Specifications

Uplink Port	RJ45 10/100M Ethernet
Serial Port	3-pole RS485 Terminal
Modbus Mode	RTU/TCP Auto-Bridge
Cloud Support	MQTT, HTTP, Virtual-COM
Power Supply	DC 9V ~ 24V Jack
Indicator LEDs	Power/Link/ACT/LoRa

LoRa/ZigBee Devices

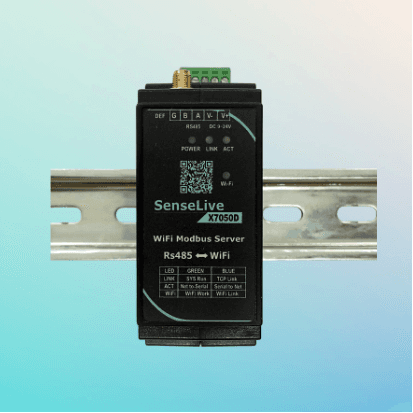

Senselive X7050D

Industrial Wi-Fi Serial Server – RS-485 to 802.11b/g/n with DIN-Rail Mount

DIN-Rail Mounting Clip
MQTT & JSON Cloud Support
Industrial Temperature Range

Technical Specifications

Serial Interface	1 x RS-485 (Terminal Block)
Network Interface	Wi-Fi (802.11 b/g/n) + 10/100M Ethernet
Wireless Frequency	2.412 GHz - 2.484 GHz
Protocols	Modbus TCP⇆RTU, MQTT, JSON, TCP/UDP
Power Supply	9-24V DC (Terminal Block)
Operating Temperature	-40°C to +85°C

WiFi Solutions

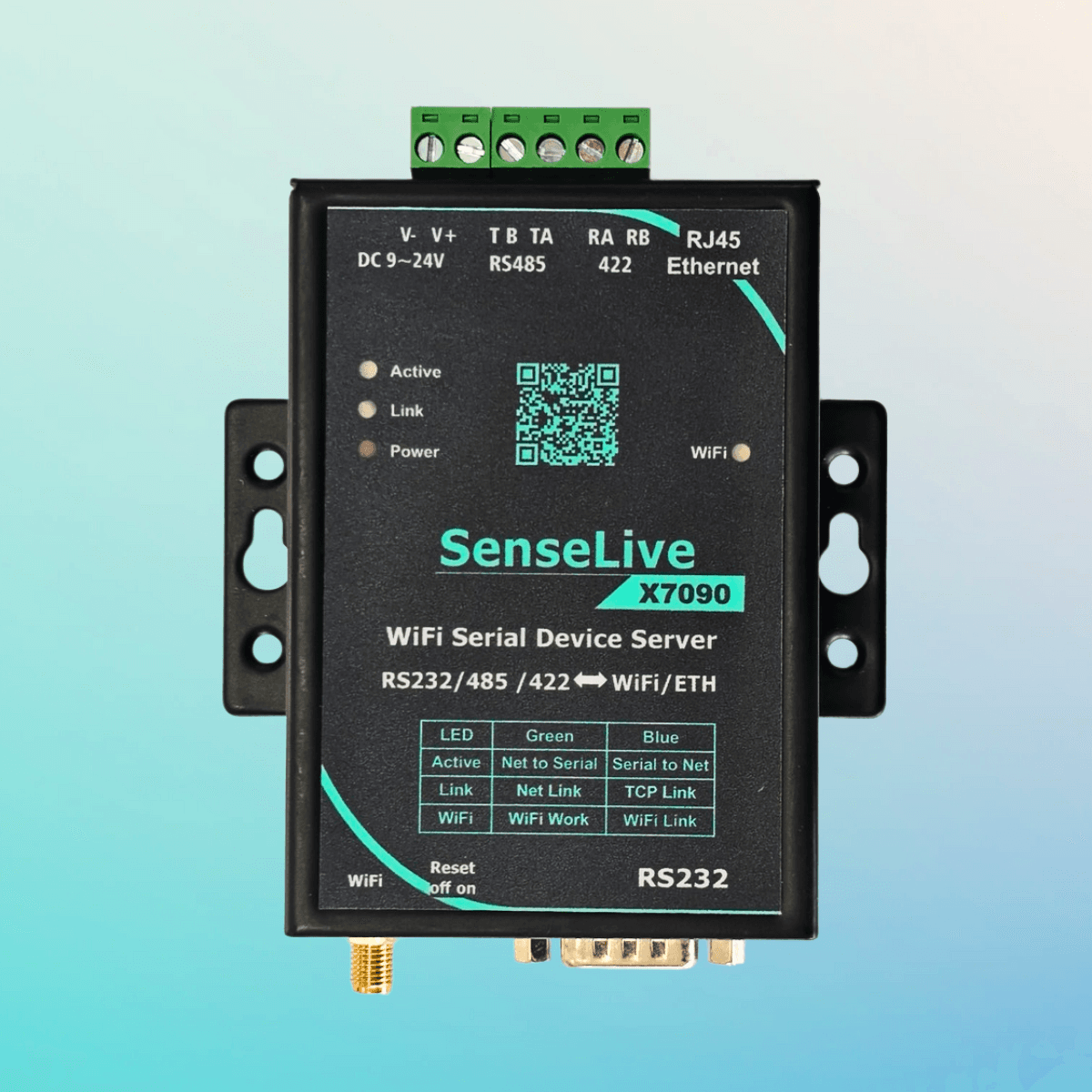

Senselive X7090

Wi-Fi Serial Server

Supports Wi‑Fi 802.11 b/g/n standards for reliable wireless communication
Wide input voltage range (9–24V) and industrial-grade operating temperature (–40℃ to 85℃)
Robust RS485-to-Wi‑Fi conversion for legacy serial devices

Technical Specifications

Serial Interface	RS232 + RS485/422
Network Interface	Wi-Fi (802.11 b/g) + 10/100M Ethernet
Wireless Frequency	2.412 GHz - 2.484 GHz
Protocols	TCP/UDP, ARP, ICMP, DHCP, DNS, HTTP
Power Supply	9-24V DC (< 1W)
Operating Temperature	-40°C to +85°C

WiFi Solutions

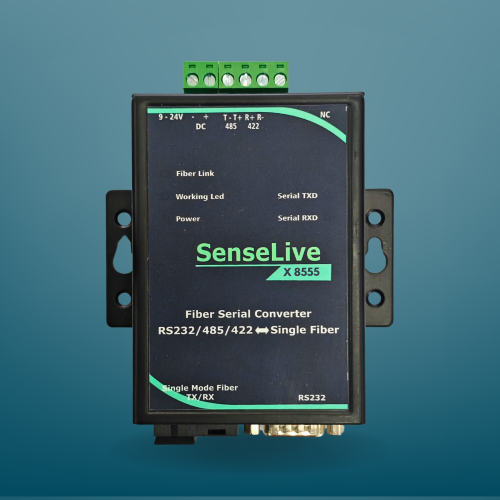

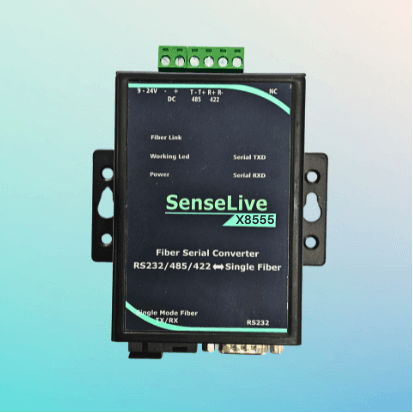

SenseLive X8555

RS232/485/422 to optical fiber

Single-mode Single Fiber
Up to 20 km LOS
Zero-Delay Transmission

Technical Specifications

Serial Interface	RS232 (DB9) + RS485/422 (Terminal)
Network Interface	Single-mode SC Fiber (Bi-directional)
Transmission Distance	Up to 20 km Line-of-Sight
Optical Wavelength	A: TX 1310nm/RX 1550nm; B: TX 1550nm/RX 1310nm
Baud Rate	1200 ~ 115200 bps
Power Supply	9-24V DC (Reverse Polarity Protected)

Optical Fiber

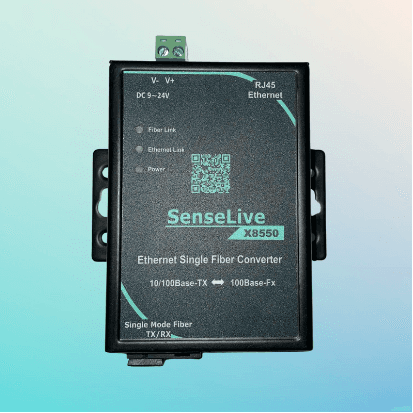

SenseLive X8550

Optical Transceiver Industrial Fiber

Industrial-Grade Transceiver
Single-Mode Fiber
Rugged Converter

Technical Specifications

Network Interface	Industrial RJ45 + Dual SC Fiber
Network Speed	100 Mbps Optical Link
Transmission Distance	Up to 20 km
Protection	Level 4 Industrial ESD Protection
Power Supply	12V-24V DC (Surge Shielded)
Operating Temperature	-40°C to +85°C

Optical Fiber

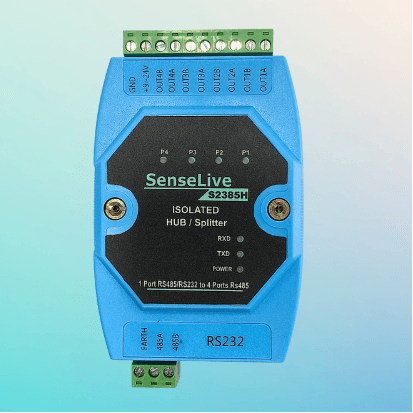

SenseLive S2385H

4-Port Industrial Isolated RS485 Hub / Splitter

1-ch to 4-ch Splitter
2500V Isolation Protection
9–24V DC input

Technical Specifications

Serial Interface	8 Channel RS485
Baud Rate	0~200 Kbps (Self-adaptive)
Isolation	2500V Photoelectric Isolation
Protection	RS485: 12KV Static Protection
Power Supply	9-24V DC (Terminal Block)
Operating Temperature	-45°C to +85°C

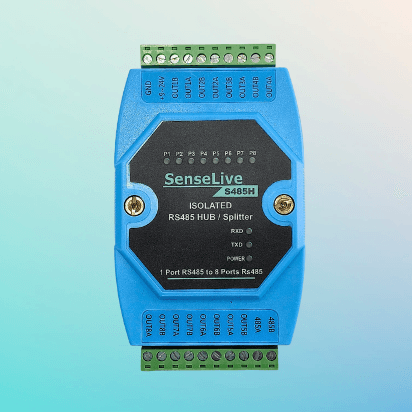

SenseLive S485H

8 channel S485H- RS485 HUB Remote IO Controller

8 RS485 Slave Ports with 1 Master Port
Opto-Isolated for High Reliability
Supports High Baud Rate up to 460800bps

Technical Specifications

Serial Interface	1 x RS485 Master; 8 x RS485 Slaves
Baud Rate	Up to 460800 bps
Isolation	2500V Voltage Isolation
Protocols	Transparent Half-Duplex
Power Supply	9-24V DC (Terminal Block)
Operating Temperature	-45°C to +85°C

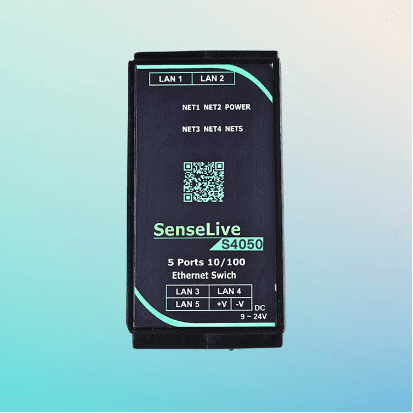

SenseLive S4050

Industrial grade switch

5-port 10/100M adaptive Ethernet
Compact rail-mounted
Wide 9–24V DC power input

Technical Specifications

Standard	IEEE 802.3, 802.3u, 802.3x
Ports	5 x RJ45 (Auto MDI/MDIX)
Cache Space	448K Buffer
Transmit	Store and Forward
Heat Limit	Shell rated to 110°C
Isolation	EMC Static & Surge Protection

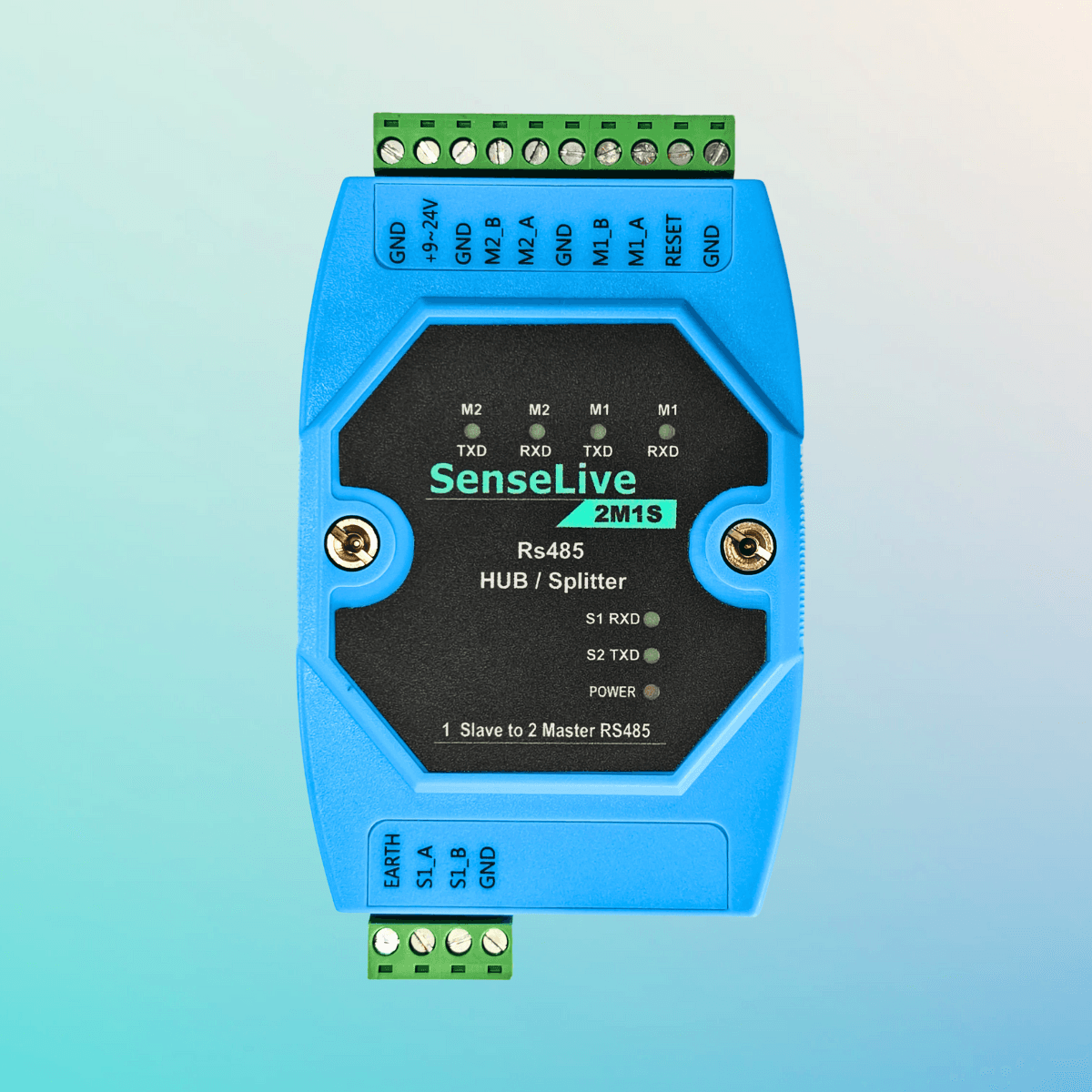

SenseLive 2M1S

RS485 HUB

Enables two masters to share one slave device without data
Integrated memory buffer ensures zero packet loss during simultaneous transmissions
3x RS485 ports, each supporting independent baud rate

Technical Specifications

Ports	RS485
Modes	2-Master-1-Slave
Conflict Res.	Internal Cache Arbitration
Data Bits	8 bits (fixed)
Baud Rate	1200 ~ 460800 bps
Isolation	Photoelectric Port Isolation
