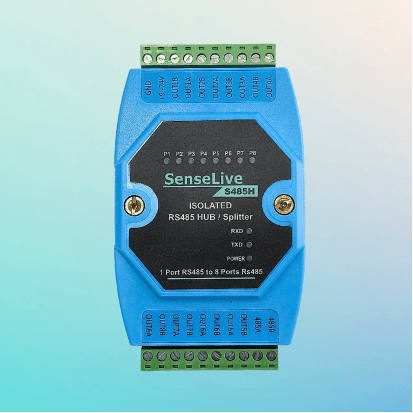

SenseLive S485H
8 Channels RS485 HUB Remote IO Controller
Short Description
SenseLive SenseLive S485H Our 8 Channels RS485 HUB Remote IO Controller simplifies remote data acquisition. Perfect for industrial monitoring & control systems. See specs.
Key Features
- RS485 master port and slave ports with opto-isolator protection
- Supports high baud rate up to 460800 bps
- Power supply isolated from both master and slave RS485 power supplies
- Back equipped with guide installation card slot for easy mounting
- Wide input voltage range: 9–24 V
Product Overview
The SenseLive S485H is an industrial RS485-to-Profinet communication gateway with dual Ethernet and four RS485 ports. It enables seamless protocol conversion between Modbus and Profinet for industrial automation and IoT applications.
It supports multiple operating modes including Modbus Master/Slave, Profinet Slave, and Modbus TCP Slave, ensuring flexible integration with existing systems and network architectures.
Designed for harsh industrial environments, the X485H features high-capacity data handling, rugged DIN-rail mounting, wide voltage input (9–24V DC), and operates reliably in extreme temperatures from –40°C to 85°C, making it ideal for critical industrial communications.
Why Choose SenseLive S485H
Reliable Profinet–Modbus Conversion
Seamlessly converts between Profinet and Modbus protocols with dedicated GSDML support for easy industrial integration.
Dual Ethernet & Multi RS485 Ports
Dual 10/100M Ethernet ports with switching/cascade support, plus four independent RS485 channels for flexible network connectivity.
Multiple Operating Modes
Supports Modbus Master/Slave, Profinet Slave, and Modbus TCP Slave modes for versatile industrial deployments.
Rugged Industrial Design
Metal DIN-rail enclosure, wide 9–24V DC input, and operation from –40°C to 85°C for reliable performance in harsh environments.
Status Indicators & Easy Configuration
LED indicators for network and port activity, configurable via TIA Portal, STEP7-Micro/WIN SMART, and Profinet PN master software.
Related Products
Explore other products that work well with SenseLive S485H or serve similar purposes.

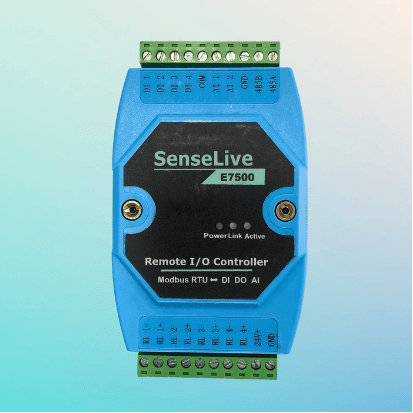

SenseLive E7500
