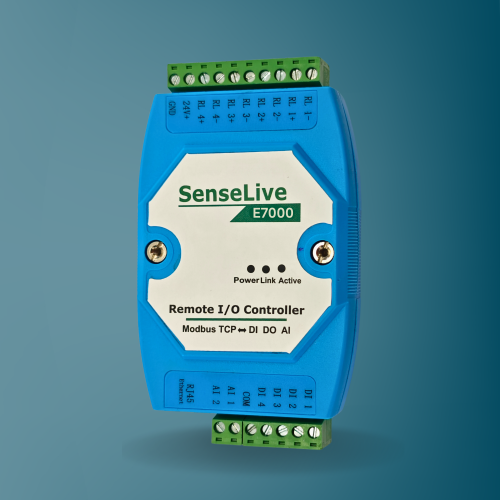

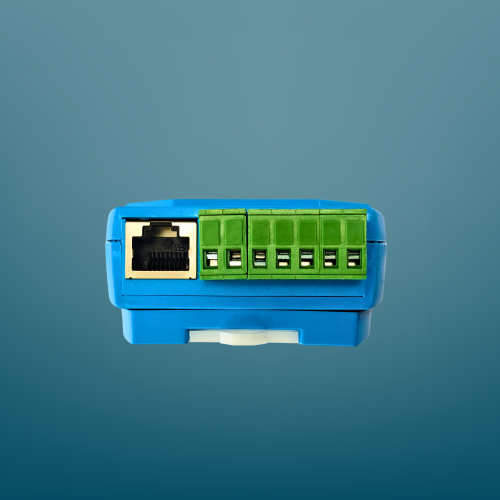

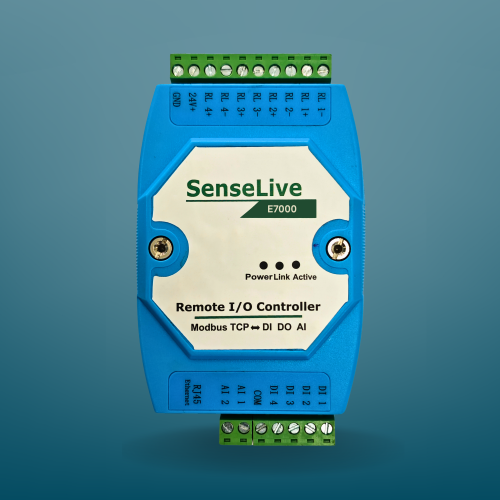

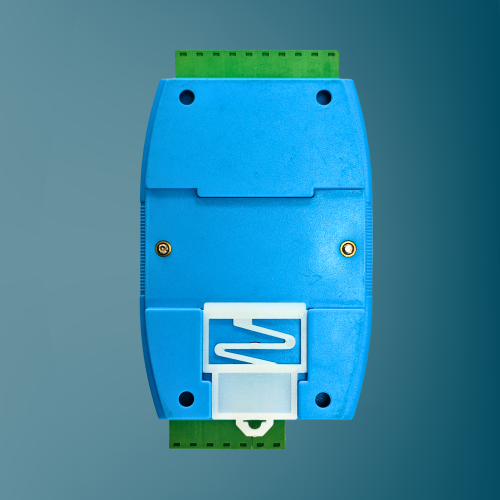

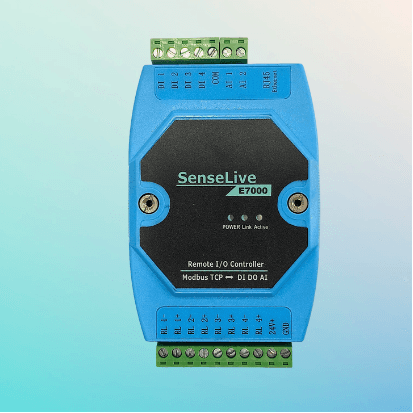

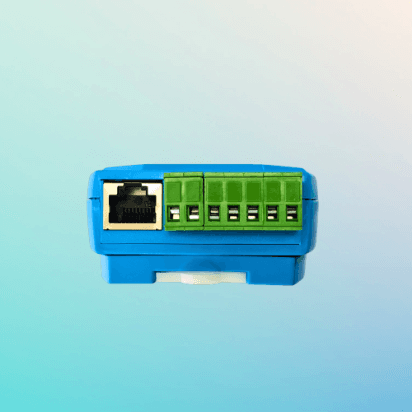

SenseLive E7000
Ethernet-based Remote IO Controller
Short Description
SenseLive E7000 Easily monitor & control remote assets with our Ethernet-based Remote IO Controller. Get reliable, real-time data acquisition for your industrial automation systems.
Key Features
- 4 Digital Inputs (passive switch or active power level)
- 2 Analog Inputs (0-5V, 0-10V, 4-20mA, or 0-10kΩ)
- 4 Relay Outputs (5A @ AC250V or DC30V)
- Modbus TCP/RTU support with virtual COM port
Product Overview
SenseLive E7000 is an intelligent remote IO controller designed for digital input/output and analog input across Ethernet networks. It enables convenient connections to TCP/IP systems, supporting remote control and data acquisition in industrial, commercial, or utility environments.
With support for Modbus TCP to Modbus RTU, SenseLive E7000 provides 4 digital inputs, 2 analog inputs, and 4 relay outputs. It's ideal for integrating with SCADA or other industrial software.
SenseLive E7000 can be configured and managed via Windows tools for easy parameter updates and virtual COM port mapping. The device management library simplifies programming with standard read/write functions in various languages.
Why Choose SenseLive E7000
Versatile I/O Options
Multiple digital and analog I/O channels for comprehensive control and monitoring.
Network Features
DHCP, DNS support, up to 100 TCP connections, 2KV ESD protection.
High Reliability
Operates in wide temperature ranges and engineered for stable, long-term performance.
Active Reporting
Can actively push DI state changes and AI values to a host, eliminating the need for constant polling.
Related Products
Explore other products that work well with SenseLive E7000 or serve similar purposes.
SenseLive E7500
RS485-based Remote IO Controller
- Versatile I/O Options: Multiple digital and analog I/O channels for comprehensive control and monitoring in industrial environments.
- RS485 Communication: Reliable RS485 communication with Modbus RTU protocol and baud rates from 1200 to 115200 bps.
- High Reliability: Industrial-grade design that operates in wide temperature ranges (-40°C to +85°C) for stable, long-term performance.
- Active Reporting: Can actively push DI state changes and AI values to a host, eliminating the need for constant polling.
SenseLive X5050
RS485 to TCP/IP Modbus Server
- Modbus TCP ↔ RTU Conversion
- MQTT Protocol Support
- DIN-Rail Mounting
- Industrial Temprature Range

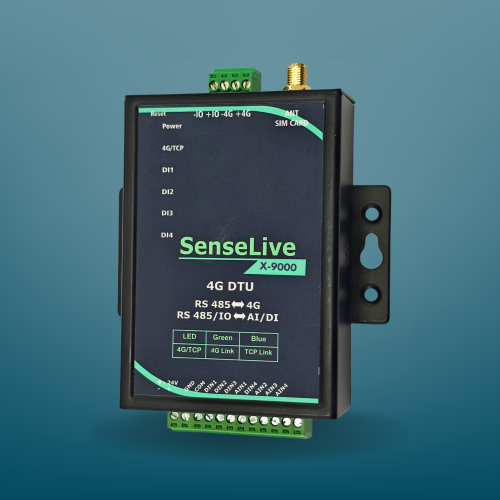

SenseLive X9000
4G IoT Gateway with Edge Intelligence
- Built-in 4G LTE cellular connectivity for reliable remote communications
- Multiple I/O channels including RS485, digital inputs, and analog inputs
- Computing capabilities for local data processing and decision-making
- Industrial-grade design with wide operating temperature range (-40°C to 85°C)
