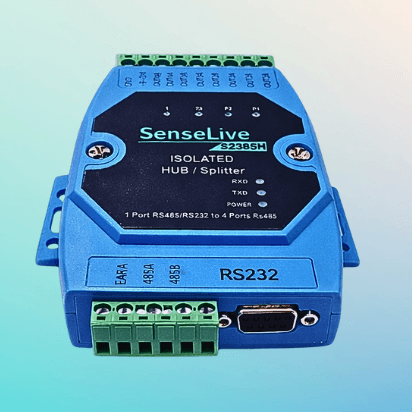

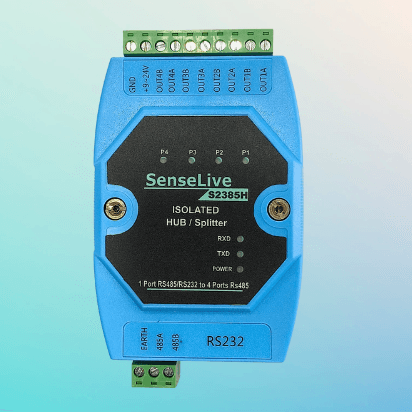

SenseLive S2385H
Industrial RS232 / RS485 / RS422 Multi-Protocol Hub
Short Description
The SenseLive S2385H is a versatile industrial serial hub designed for seamless integration of RS232, RS485, and RS422 devices. Featuring advanced optical isolation and lightning protection, it ensures stable data transmission in electrically noisy environments.
Key Features
- Integrated support for RS232, RS485, and RS422 interfaces
- High-speed data rates up to 460800 bps with self-adaptive logic
- 3KV optical isolation and 1500W surge protection per port
- Automatic data direction control (ADDC) – no flow control needed
- DIN-rail and wall-mount ready industrial metal enclosure
- Wide power input range: 9V to 36V DC
Product Overview
The SenseLive S2385H is a flagship industrial hub designed to solve complex serial communication challenges. By supporting three major serial standards—RS232, RS485, and RS422—it acts as a central node for heterogeneous industrial networks.
Equipped with professional-grade signal isolation, the S2385H prevents ground loop interference and protects expensive control equipment from high-voltage spikes. Its plug-and-play design handles protocol conversion and direction control internally, allowing users to focus on data rather than timing.
Industrial Durability
Wide Temp Support
-40°C to +85°C
Anti-Corrosive Metal Shell
Zero-Delay Auto-Forwarding
Related Products
Explore other products that work well with SenseLive S2385H or serve similar purposes.

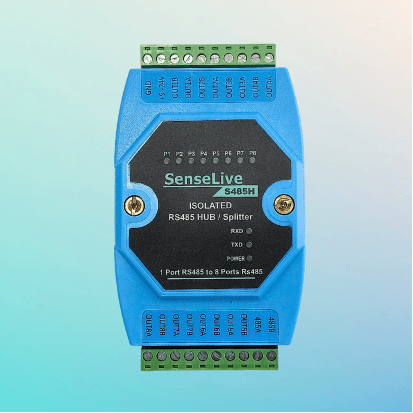

SenseLive S485H
8 channel S485H- RS485 HUB Remote IO Controller
- 8 RS485 Slave Ports with 1 Master Port
- Opto-Isolated for High Reliability
- Supports High Baud Rate up to 460800bps
- Power Supply: DC 9–24V

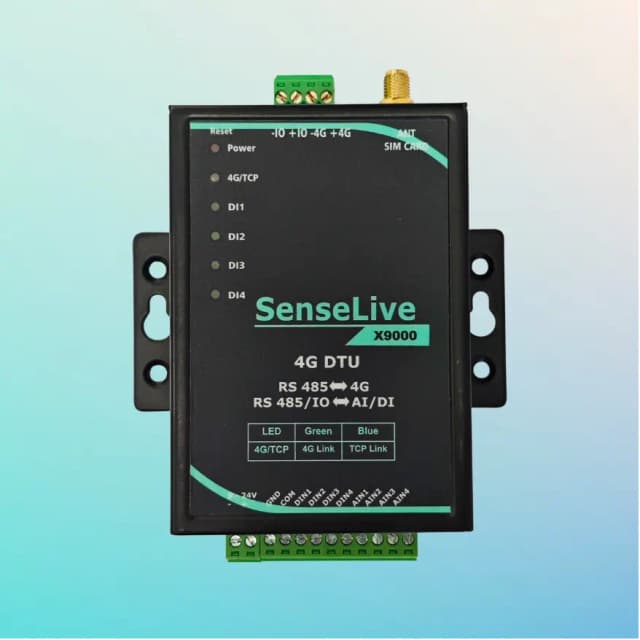

SenseLive X9000
